Sanitary Butterfly Ball Valve *304/316L

Short Description:

Applications

● Santary butterfy valve,can be used in material handingThis valve range of applications including food and beverageprocessing, pharmaceutical and chemical industries as well asother pelds.

● Completely through the valve chamber design does not produceany Buid resistance, so that the valve is such that the best choicefor handling viscous Buids or particulate matter.


Product Detail

Product Tags

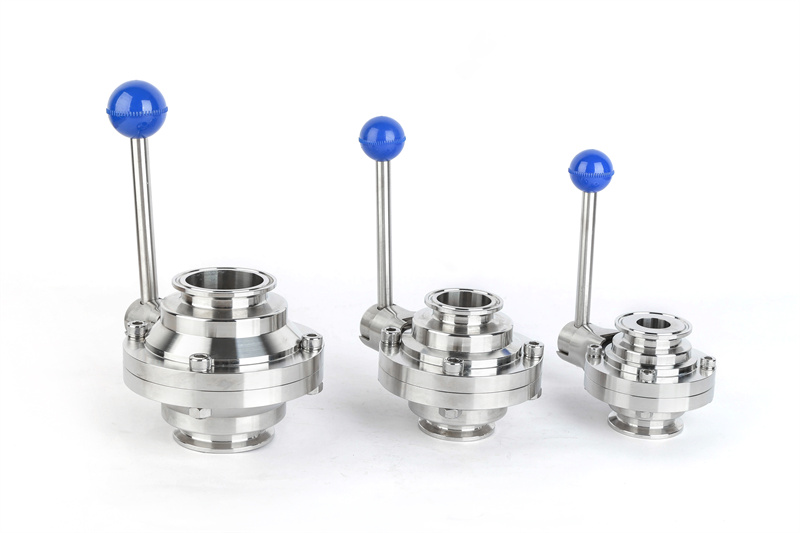

Butterfly ball valve

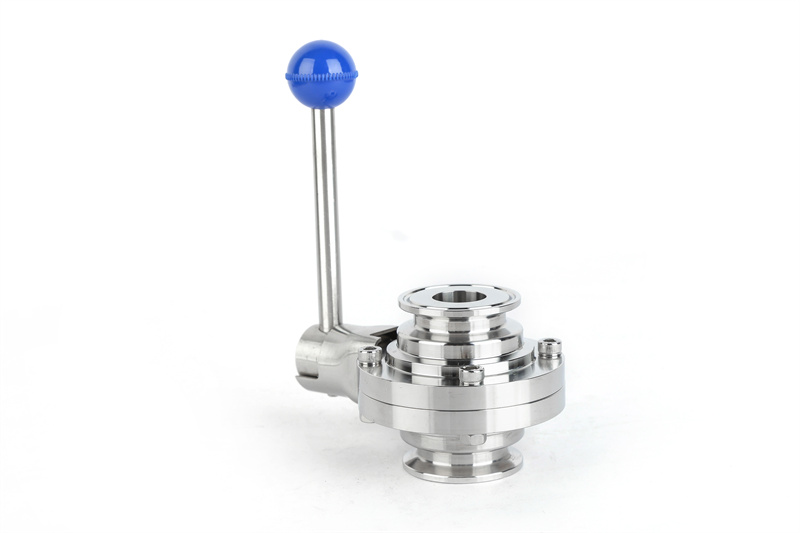

Butterfly ball valve2

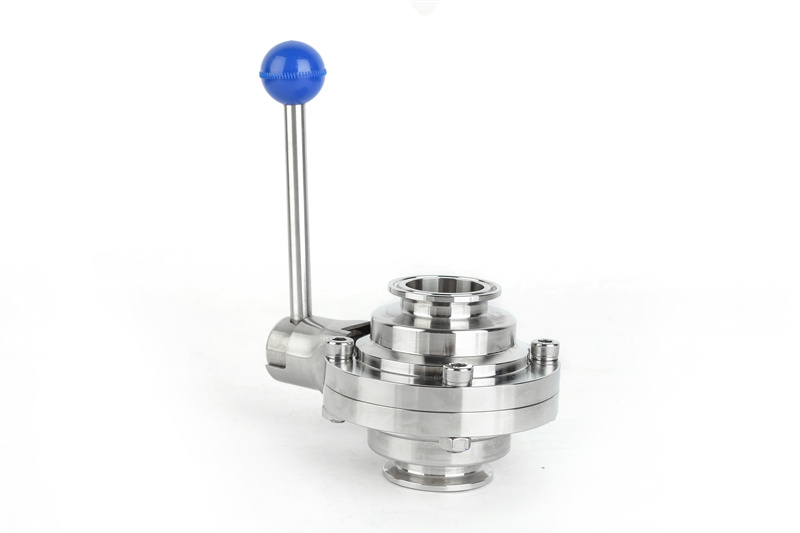

Butterfly ball valve3

Operating principles

● This kind of valve can be operated through actuator(eletricpnematic).
● Actuator or manually with the hand is to revolve the axialmovement of piston actuator (electric or pneumatic)pushed theposition of axial movement unto 90 degree; So thed it the valvecan open or dose. The actuator have three types.
● Muti-position handle can use to 15°adjustment of valve there is12 seat to lock open or close, In that way, the valve can control the Bow.
● Pulling handle can use to the 4 multi-function to lock open orclose, In that way, the valve can control the Bow.

Materials

● Product wetted steel parts: 304/316L
● Other steel parts: 304
● Flow components of surface roughness: Ra≤0.8
● Outer surface roughness: Ra≤1.6
● Pneumatic head outer surface roughness: Matt
● Wetted seals: PTFE, EPDM
● Other Seals: PTFE, NBR

ST-V1046

Clamped Butterfly Type Ball valve(DIN)

Size

Dn

D

A

H

J

K

DN15

15

34

72

86.5

126

8×8

DN20

19

34

72

86.5

126

8×8

D25

25

50.5

72

90.5

126

8×8

DN32

31

50.5

83

92.5

126

8×8

DN40

38

50.5

87

100.5

126

10×10

DN50

49

64

101

113.5

133

10×10

DN65

66

91

125

125.5

144

11×11

DN80

81

106

135

135.5

144

11×11

DN100

100

119

170

158.5

160

14×14

ST-V1047

Clamped Butterfly Type Ball Valve(3A SMS ISO Ds)

Size

D

A

H

J

K

1/2"

25.4

72

86.5

126

8×8

3/4"

254

72

86.5

126

8×8

1"

50.5

72

90.5

126

8×8

11/4"

50.5

83

92.5

126

8×8

11/2"

50.5

87

100.5

126

10×10

2"

64

101

113.5

133

10×10

21/2”

77.5

125

125.5

144

11×11

3"

91

135

135.5

144

11×11

4"

119

170

158.5

160

14×14

ST-V1048

Welded Butterfly Type Ball Valve(DIN)

Size

D

t

A

H

J

K

DN15

18

19

1.5

72

86.5

126

8×8

DN20

22

23

1.5

72

86.5

126

8×8

DN25

28

29

1.5

72

90.5

126

8×8

DN32

34

35

1.5

83

92.5

126

8×8

DN40

40

41

1.5

87

100.5

126

10×10

DN50

52

53

1.5

101

113.5

133

10×10

DN65

70

-

2

125

125.5

144

11×11

DN80

85

-

2

135

135.5

144

11×11

DN100

104

-

2

170

158.5

160

14×14

ST-V1049

Welded Butterfly Type Ball Valve(3A SMS ISO DS)

Size

D

A

H

J

K

1/2"

12.7

72

86.5

126

8×8

3/4"

19.1

72

86.5

126

8×8

1"

25.4

72

90.5

126

8×8

11/4"

31.8

83

92.5

126

8×8

11/2"

38.1

87

100.5

126

10×10

2"

50.8

101

113.5

133

10×10

21/2"

63.5

125

125.5

144

11×11

3"

76.2

135

135.5

144

11×11

4"

101.6

170

158.5

160

14×14

ST-V1050

Threaded Butterfly Type Ball valve (DIN)

Size

Dn

G

A

H

J

K

DN15

15

Rd34×1/8

72

86.5

126

8×8

DN20

19

Rd44×1/6

72

86.5

126

8×8

DN25

25

Rd52×1/6

72

90.5

126

8×8

DN32

31

Rd58×1/6

83

92.5

126

8×8

DN40

37

Rd65×1/6

87

100.5

126

10×10

DN50

49

Rd78×1/6

101

113.5

133

10×10

DN65

66

Rd95×1/6

125

125.5

144

11×11

DN80

81

Rd110×1/4

135

135.5

144

11×11

DN100

100

Rd130×1/4

170

158.5

160

14×14

ST-V1051

Threaded Butterfly Type Ball Valve(SMS)

Size

Dn

G

A

H

J

K

Φ19

16

Rd36×1/8

72

86.5

126

8×8

Φ25

22.4

Rd40x1/6

72

90.5

126

8×8

Φ32

28.8

Rd48×1/6

83

92.5

126

8×8

Φ38

35.1

Rd60×1/6

87

100.5

126

10×10

Φ51

47.8

Rd70×1/6

101

113.5

133

10×10

Φ63

59.5

Rd85×1/6

125

125.5

144

11×11

Φ76

72.2

Rd98×1/6

135

135.5

144

11×11

Φ102 min

97.6

Rd125×1/4

170

158.5

160

14×14

Φ102 max

97.6

Rd132×1/6

170

158.5

160

14×14

ST-V1052

Threaded Butterfly Type Ball Valve  ( 3A )

Size

Dn

G(Acme)

A

H

J

K

1/2"

22.1

37.1×1/8

72

86.5

126

8×8

3/4"

28.8

45.9×1/8

83

90.5

126

8×8

1 1/2"

34.8

50.6×1/8

87

100.5

126

10×10

2'

47.5

64.1×1/8

101

113.5

133

10×10

2 1/2"

60

77.6×1/8

125

125.5

144

11×11

3“

72.9

91.1×1/8

135

135.5

144

11×11

 4 ”

97.6

119.2×1/6

170

158.5

160

14×14
